J-101/102

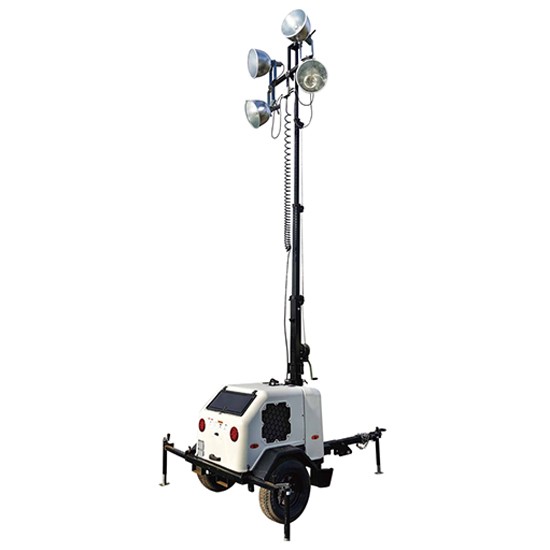

GLTJ9105 Hydraulic Light Tower: 9m fast - lift mast, 4×300W LEDs, Kubota diesel power. Quiet, powerful, covers 4100m²—perfect for construction and urgent lighting needs!
Product Description
| Category | Sub - category | Hydraulic Light Tower GLTJ9105 | |
| Model | Order number | J - 101 | J - 102 |
| Lamp Specifications | Lamp Type | LED | LED |
| Number of Lamps | 4 | 4 | |
| Nominal Lamps Power (Total) | 4*300W | 4*300W | |
| Lighting Capacity Lumen | 156000Lm | 156000Lm | |
| Lit up area m2 | 4100 m2 | 4100 m2 | |
| Mast System | Lifting System | Manual/Hydraulic Lifting | Manual/Hydraulic Lifting |
| Mast Lift Time | 25 seconds | 25 seconds | |
| Maximum height | 9M | 9M | |
| Lighthead Rotate | 360 deg | 360 deg | |
| Wind Speed Rating | 100Km/h | 100Km/h | |
| Engine Specifications | Engine Brand | Kubota | Kubota |
| Model | D1105 | Z482 | |
| Operating Speed - Nominal | 1500RPM | 1500RPM | |
| Engine cooling system | Water - Cooled | Water - Cooled | |
| Fuel | Diesel | Diesel | |
| Control System | Electric | Electric | |
| Generator | 230V AC | 48V DC | |
| Noise Level @ 7m radius | < 60 dB(A) | < 60 dB(A) | |
| Others | Weight | 1100kg | 1100kg |
| Fuel tank capacity | 125L | 125L | |
| Towing Speed (maximum) | 80 km/hr | 80 km/hr | |
