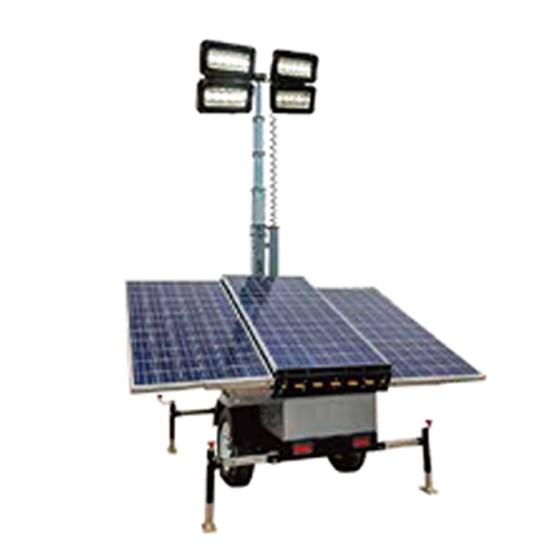

Solar Light Tower
Solar Light Tower: 4×100W LEDs, solar - powered, telescopic masts. Long runtime (17 - 19hrs), eco - friendly—perfect for off - grid projects and sustainable lighting needs
Product Description
| Category | Solar Light Tower | ||||
| Model | GLTM - 900E4 | GLTM - 900E5 | GLTM - 900P5 | PLUS & HYDRAULIC GLTM - 900SSH 4X1000W LED | PLUS & HYDRAULIC GLTM - 900ASPH 6X100W LED |
| Type of Lights | 4X100W LED | 4X100W LED | 4X100W LED | DC24V, 60,000LUMS | DC24V, 60,000LUMS |
| Lights Output | DC24V, 60,000LUMS | DC24V, 60,000LUMS | DC24V, 60,000LUMS | DC24V, 60,000LUMS | DC24V, 60,000LUMS |
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
| Rate Power | 3x380W | 3x380W | 3x380W | 3x380W | 3x455W |
| PV Controller | MPPT 40A | MPPT 40A | MPPT 40A | MPPT 40A | MPPT 40A |
| Type of Battery | Gel - battery | Gel - battery | Gel - battery | Gel - battery | Gel - battery |
| No. of Battery | 6X150AH DC12V | 6X150AH DC12V | 6X150AH DC12V | 6X150AH DC12V | 6X200AH DC12V |
| Battery Capacity | 450AH | 450AH | 450AH | 450AH | 600AH |
| System Voltage | DC24V | DC24V | DC24V | DC24V | DC24V |
| Mast | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Galvanized |
| Maximum Height | 6.5m | 7m/9m optional | 7m/9m optional | 7m | 9m |
| Wind Rating Speed | 100KMH | 100KMH | 100KMH | 100KMH | 100KMH |
| Lifting System | Manual / Electric | Manual / Electric | Manual / Electric | Hydraulic | Hydraulic |
| AC Output | / | / | 1500W | / | 1000W |
| Battery Charger | / | / | / | 1500W | 16A |
| Axle NO. | Single axle | Single axle | Single axle | Single axle | Single axle |
| Tyre and Rim | 15 inch | 15 inch | 15 inch | 15 inch | 15 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |
| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring |
| Color | Customized | Customized | Customized | Customized | Customized |
| Working Temperature | -35-60℃ | -35-60℃ | -35-60℃ | -35-60℃ | -35-60℃ |
| Operate Time | 19 hours | 19 hours | 19 hours | 19 hours | 17 hours |
| Charge Time (Solar) | 8.5 hours | 8.5 hours | 8.5 hours | 8.5 hours | 10 hours |
| Charge Time (AC) | / | / | 10 hours | 10 hours | 26 hours |
| Dimensions | 3325x1575x2855mm @6m | 3325x1575x2525mm @7m | 3325x1575x2525mm @7m | 3325x1575x2525mm @7m | 3787x1670x2410mm @9m |
| 3325x1575x3260mm @9m | 3325x1575x3260mm @9m | ||||
| Dry Weight | 1175kg | 1265kg | 1275kg | 1375kg | 1730kg |
| 20GP container | 3units | 3units | 3units | 3units | 2units |
| 40HQ container | 7units | 7units | 7units | 7units | 4units |
