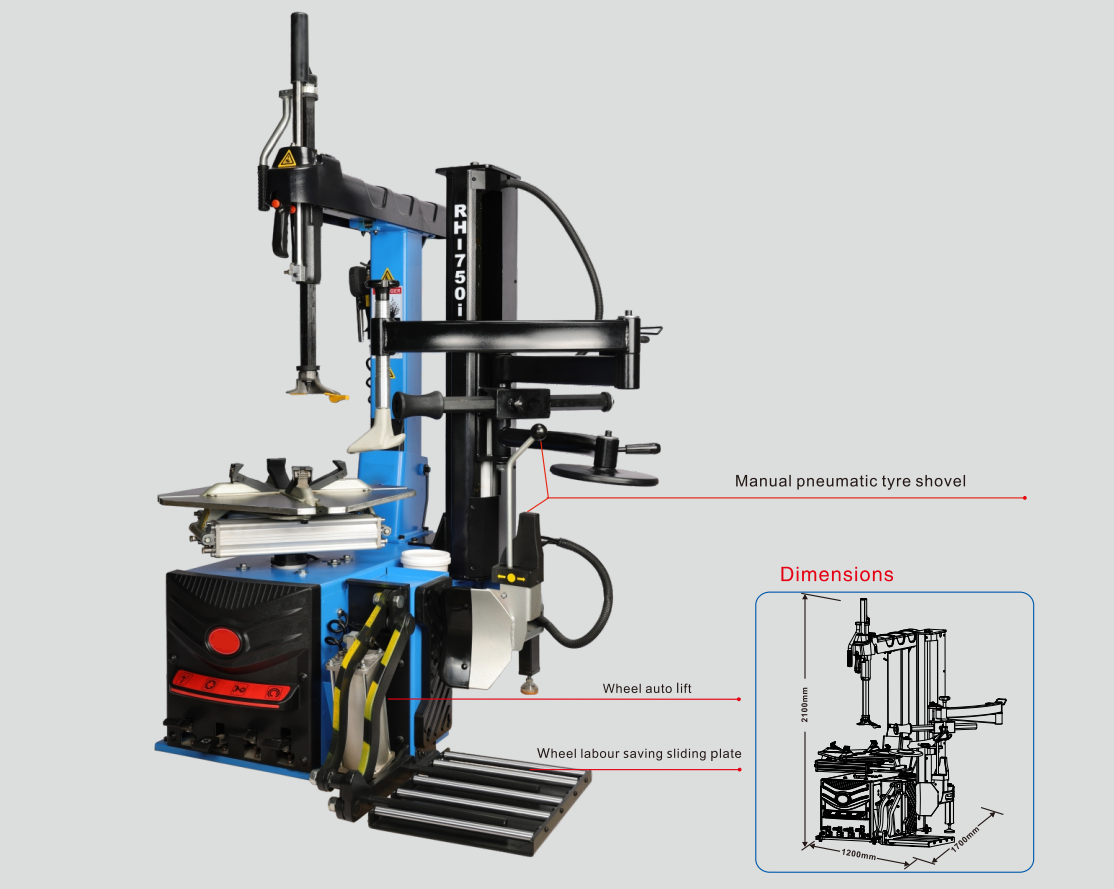

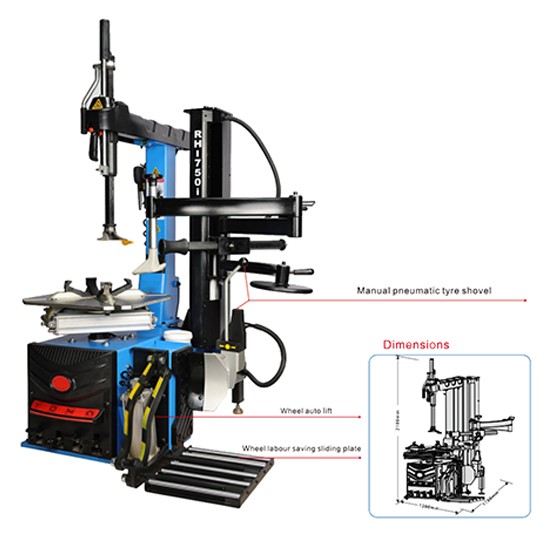

Tyre change HY-85ON+RH7501+TL
I. It supports a maximum mounting and dismounting size of up to 24 inches, and the auxiliary arm enables more efficient mounting and dismounting of low-profile tyres and run-flat tyres. II. The hand-controlled pneumatic tyre shovel changes traditional operation methods for convenient service; equipped with a tyre pneumatic lifting system, it makes moving, mounting and dismounting heavy-duty tyres more time-saving, labor-saving and convenient. III. It is fitted with an aluminum dual cylinder to
Product Description
Item | Details |
---|---|
Power supply | 110V/50 - 60Hz 220V/50 - 60Hz 380V/50Hz |
Motor Power | 1.1KW |
Outer clamping hub | 11" - 23" 280 - 585mm |
Inner supporting hub | 12" - 24" 305 - 610mm |
Tire diameter | 36" 930mm |
Tire width | 16" 410mm |
Operating pressure | 8 - 10bar |
N.W. | 349Kg |
G.W. | 388Kg |
