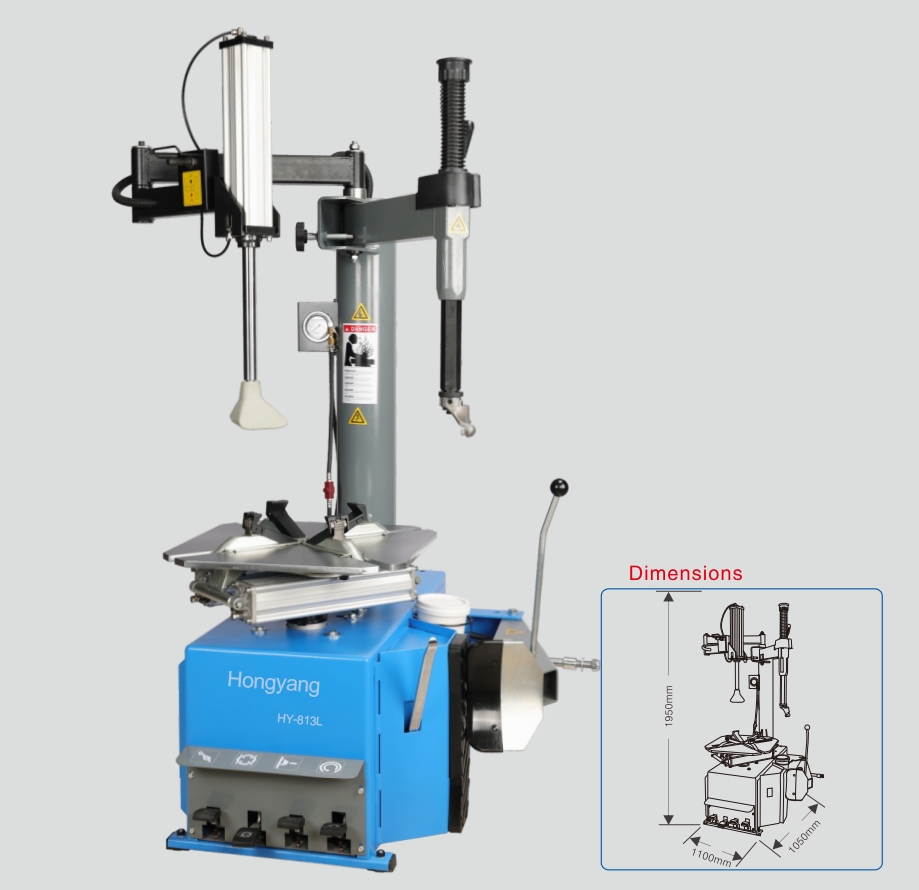

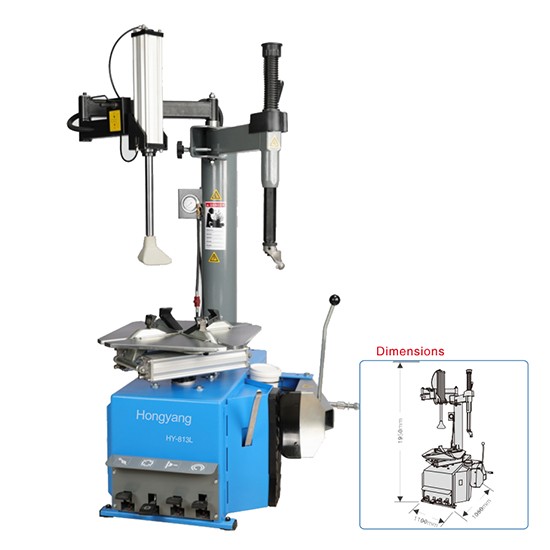

Tyre changer HY-813L
I. The overall machine is widened, thickened and has a short body, which lowers the machine’s center of gravity and makes operation easier and more convenient. II. Equipped with a left cylinder-type auxiliary arm system, it enables quicker, time-saving mounting and dismounting of tyres with larger width and aspect ratio. III. It is fitted with an aluminum big cylinder to prevent rust and ensure long service life. IV. The mounting head—professionally designed and manufactured with special allo
Product Description
Item | Details |
---|---|
Power supply | 110V/50 - 60Hz 220V/50 - 60Hz 380V/50Hz |
Motor Power | 1.1KW |
Outer clamping hub | 11" - 23" 280 - 585mm |
Inner supporting hub | 12" - 24" 305 - 610mm |
Tire diameter | 38" 980mm |
Tire width | 13" 320mm |
Operating pressure | 8 - 10bar |
N.W. | 236Kg |
G.W. | 261Kg |
