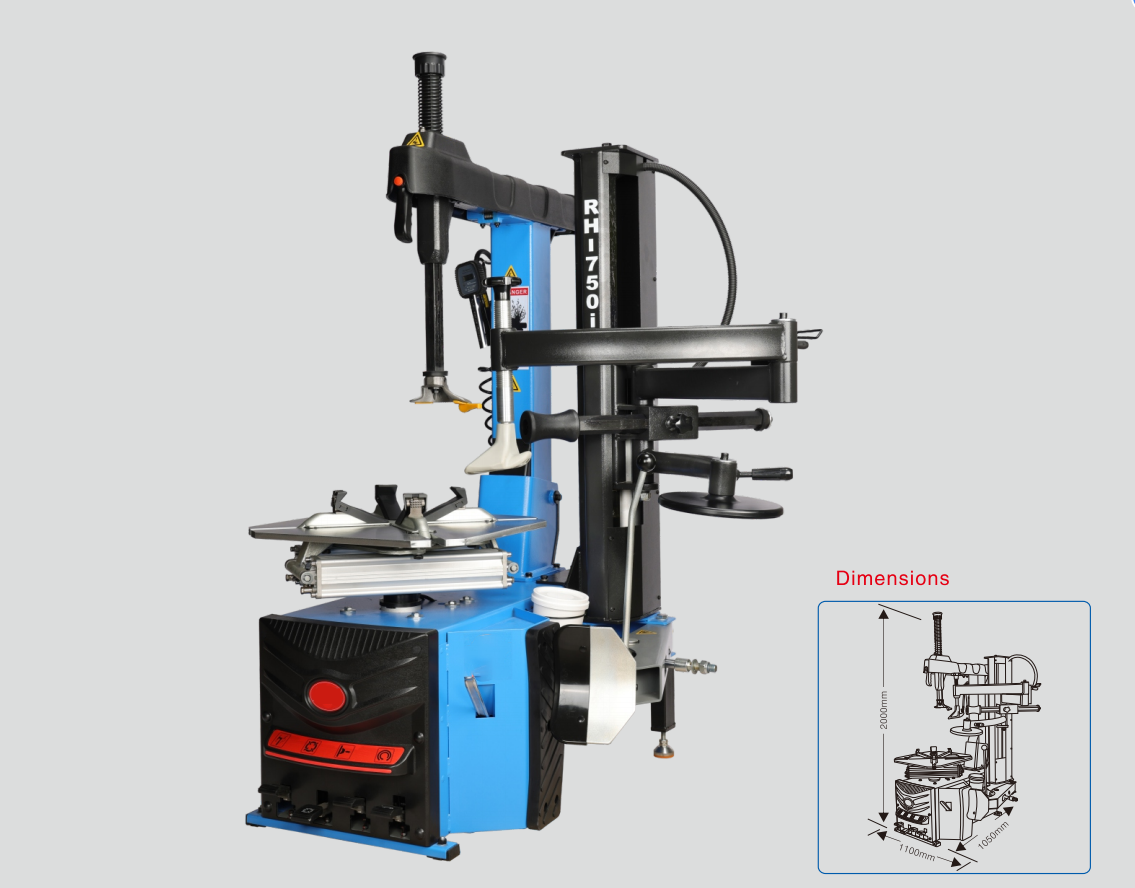

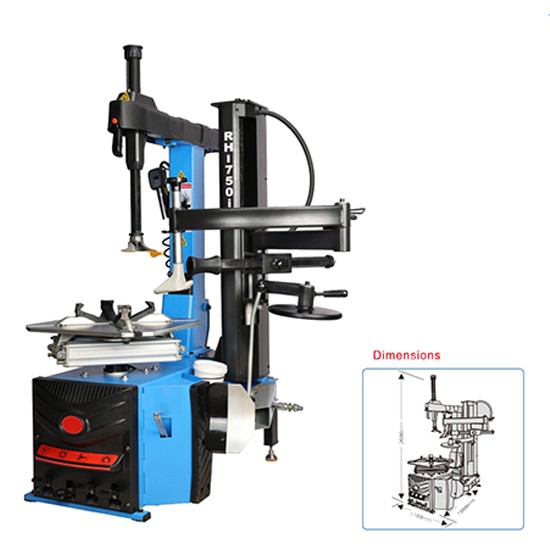

Tyre changer HY-850+RH7501
I. The overall machine is widened, thickened and shortened, which lowers the entire center of gravity and makes operation easier and more convenient. II. It supports a maximum mounting and dismounting size of up to 24 inches, and the auxiliary arm enables more efficient mounting and dismounting of low-profile tyres and run-flat tyres. III. Equipped with an aluminum big cylinder, it prevents rust and ensures long service life. IV. The mounting head—professionally designed and manufactured with
Product Description
Item | Details |
---|---|
Power supply | 110V/50 - 60Hz 220V/50 - 60Hz 380V/50Hz |
Motor Power | 1.1KW |
Outer clamping hub | 11" - 23" 280 - 585mm |
Inner supporting hub | 12" - 24" 305 - 610mm |
Tire diameter | 36" 930mm |
Tire width | 16" 410mm |
Operating pressure | 8 - 10bar |
N.W. | 317Kg |
G.W. | 350Kg |
