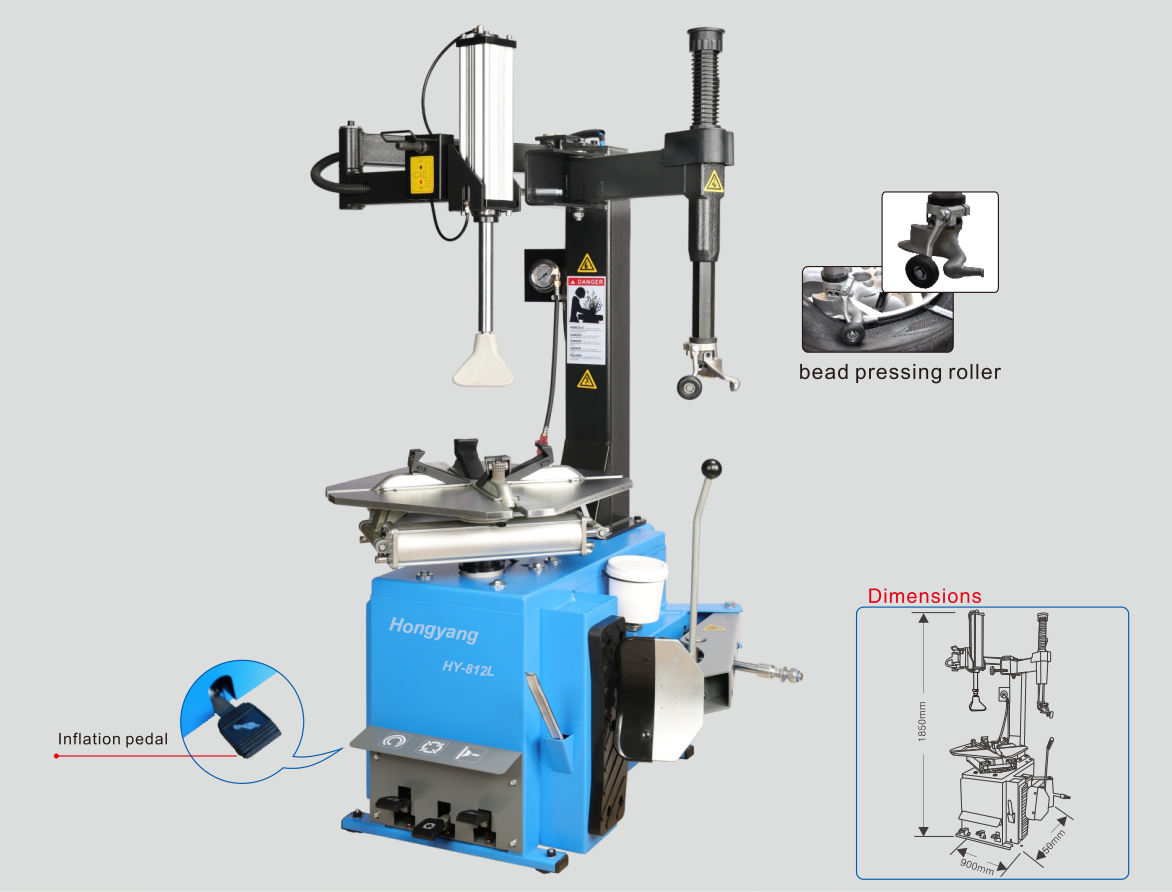

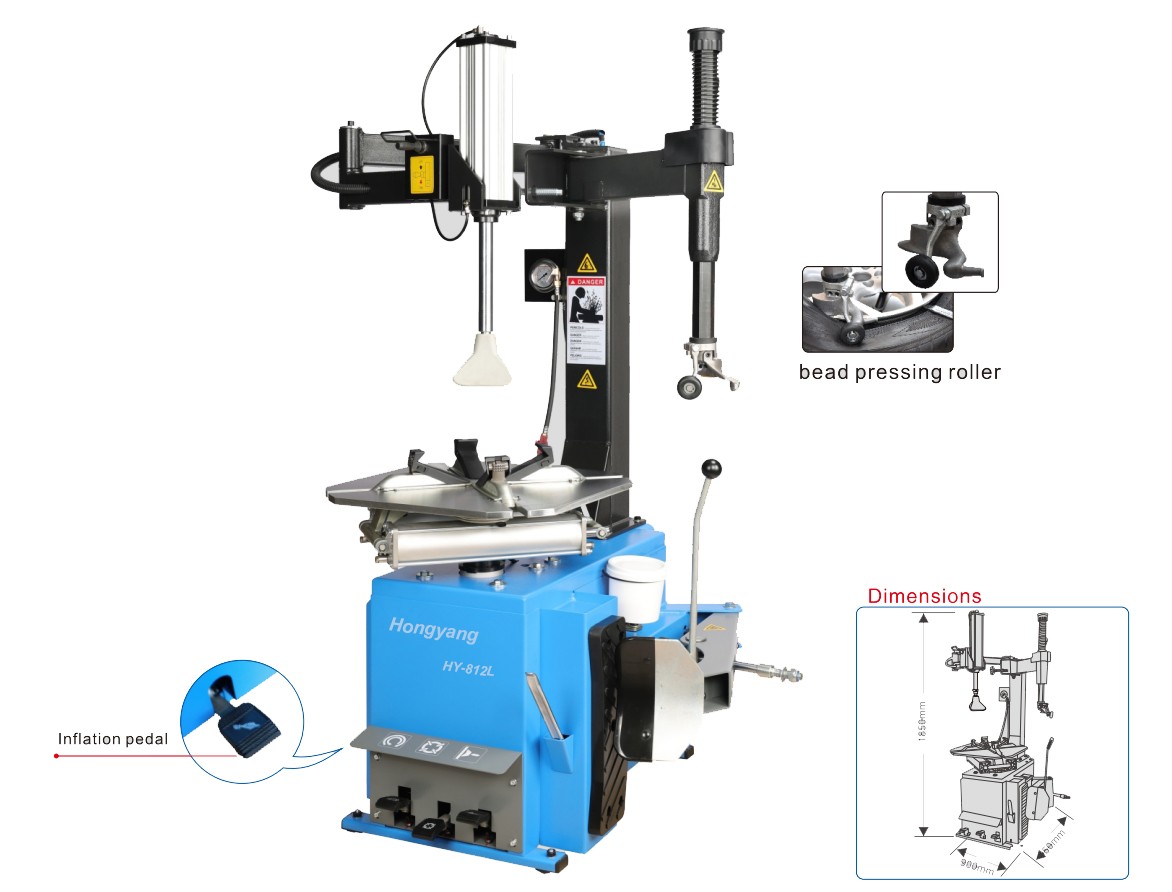

Tyre changerHY-812L
I. The mounting head is equipped with tyre pressure auxiliary wheels for easy and quick operation; meanwhile, this mounting head is professionally designed and made of special alloys, providing lifetime free service. II. It comes with a left cylinder-type auxiliary arm system, which enables quicker and more time-saving mounting and dismounting of tyres with larger width and aspect ratio. III. An aluminum big cylinder is adopted to prevent rust and ensure the machine’s long service life. IV. A
Product Description
Item | Details |
---|---|
Power supply | 110V/50 - 60Hz 220V/50 - 60Hz 380V/50Hz |
Motor Power | 1.1KW |
Outer clamping hub | 11" - 22" 280 - 560mm |
Inner supporting hub | 12" - 23" 305 - 585mm |
Tire diameter | 38" 980mm |
Tire width | 11" 280mm |
Operating pressure | 8 - 10bar |
N.W. | 215Kg |
G.W. | 237Kg |
