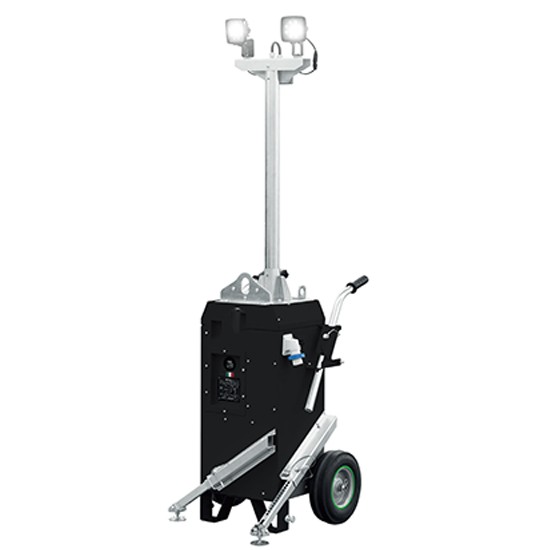

GLTM-750/2400/2800
For clean, quiet lighting needs at your project site, our Battery Line Light Towers (GLTM-750/2400/2800) are an excellent choice. They feature high-efficiency LED lighting, long-lasting AGM batteries, and manually or hydraulically adjustable masts (up to 8.5 meters in height). Whether your lighting requirement covers a small area of 750 square meters or a large area of 2400 square meters, these towers can meet it. They are suitable for all types of scenarios that pursue eco-friendly and reliable
Model | Category | GLTM-750 | GLTM-2400 | GLTM-2800 |
Model | GLTM-750 | GLTM-2400 | GLTM-2800 | |
Type | LED | LED | LED | |
Floodlights | Power (each) | 70W | 100W | 100W |
Floodlights | Floodlights number | 2 | 4 | 4 |
Floodlights | IP level | 65 | 65 | 65 |
Floodlights | Illuminated area (sqm) | 750 | 2400 | 2400 |
Floodlights | Charging time with floodlight off | ±10h | / | / |
Mast | Lifting method | Manual | Manual | Hydraulic |
Mast | Max Height | 2m | 7m | 8.5m |
Mast | Max Wind Speed | 30 km/h | 110 km/h | 110 km/h |
Mast | Rotation | 340° | 340° | 340° |
Battery | Type | AGM | AGM | AGM |
Battery | Battery number | 1 | 1 | 1 |
Battery | Power Battery Pack | 12Vdc 8H 110 Ah | 24Vdc 400Ah - (36H) | 24Vdc 400Ah - (36H) |
Battery | Running time | 8h | 36 h - 72h | 36 h - 72h |
Battery | Battery charger | 230V 1Ph Built-in | 230V 1PH | / |
Battery | Expected battery cycle | 500 | / | 500 |
Battery | Expected battery life | 9000 h | / | 18000 h |
Dimensions & weight | Dimensions min (mm) (L×W×H) | 598×648×1650(L×W×H) | 1200×1200×2300(L×W×H) | 2540×1390×2420(L×W×H) |
Dimensions & weight | Dimensions max(mm) (L×W×H) | 1000×664×2000(L×W×H) | 2500×2500×7000(L×W×H) | 2540×1550×8500(L×W×H) |
Dimensions & weight | Total weight (kg) | 108 | 750 (36H) - 998 (72H) | 910 (36H) - 1242 (72H) |
Factory options | Running time | / | / | 300 h dimmable configuration |
