HY80DCLE Diesel Water Pump
I. Pump Type：Cast Iron Diesel Water Pump II. Model Variants：HY80DC(L)(E)（L: large fuel tank; E: Electric start） III. Inlet/Outlet Size：80(3") mm(in) IV. Performance Parameters：Max Displacement 42 CBM/H；Max Lift 75 m；Max Suction Head 8 m V. Engine Model：HY188DF/FE VI. Engine Specifications：Air Cooled 1 - Cylinder 4 - Stroke Diesel Engine；Bore*Stroke 88×75 mm；Displacement 456 cc；Compression Ratio 19:01；Rated Power 7.5 Kw；Rotation Speed 3600 RPM VII. Fuel & Tank：Fuel 0# or - 10# Diesel；Fuel T
Product Description

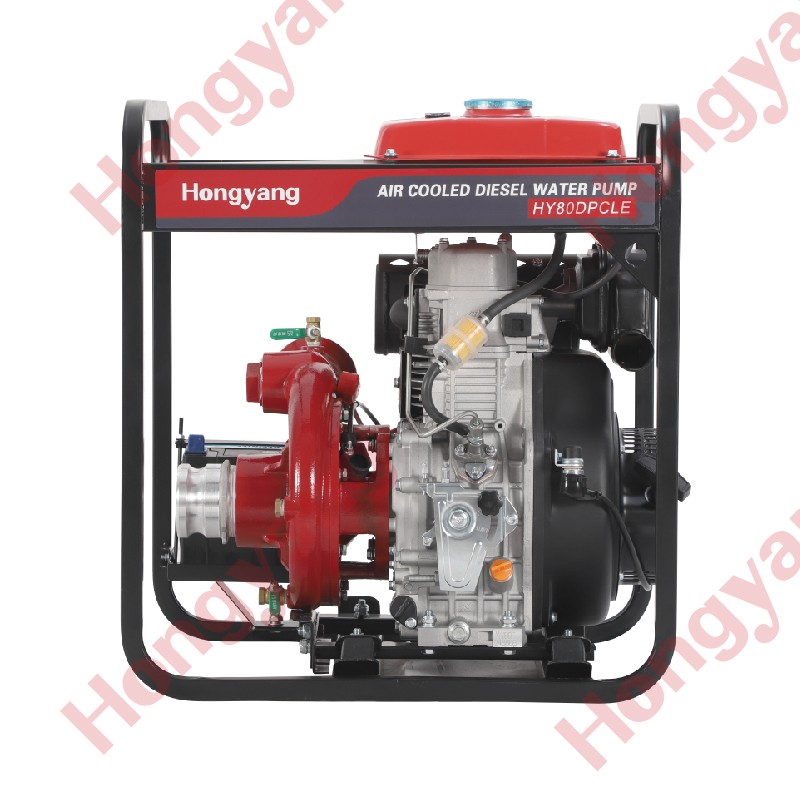

Hongyang HY80DC(L)(E) is a cast iron diesel water pump. It’s driven by an air - cooled 1 - cylinder 4 - stroke diesel engine, featuring an 80(3") inlet/outlet, 42 CBM/H max displacement, and 75 m max lift, well - suited for water - pumping scenarios demanding durable and efficient performance.
| Model | HY80DC(L)(E) |
|---|---|
| Type | Cast Iron Diesel Water Pump |
| Inlet/Outlet At Size(mm(in)) | 80(3") |
| Displacement Q.max(CBM/H) | 42 |
| Lift H.max(m) | 75 |
| Max Suction Head(m) | 8 |
| Fuel Tank Capacity(L) | 5.5(L:12.5L) |
| Engine Model | HY188DF/FE |
| Type | Air Cooled 1 - Cylinder 4 - Stroke Diesel Engine |
| Bore*Stroke(mm) | 88x75 |
| Rated Power(Kw) | 7.5 |
| Rotation Speed(RPM) | 3600 |
| Displacement(cc) | 456 |
| Compression Ration | 19:01 |
| Fuel | 0# or - 10# Diesel |
| Net Weight(Kg) | 79(E:95) |
| Packing Size(mm) | 650x470x605(L:650x470x700) |
| Optional | L: large fuel tank E: Electric start |
