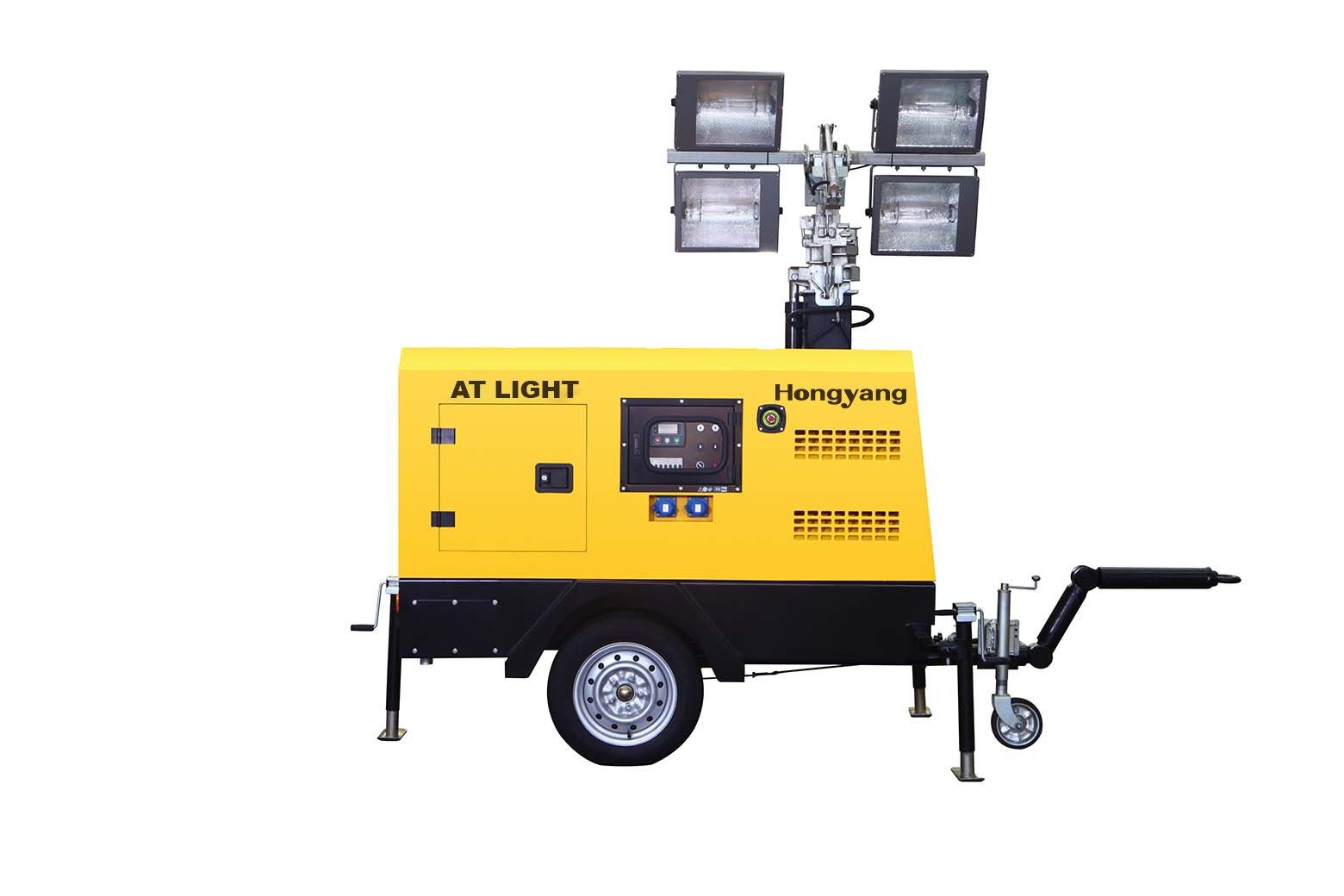

HYLTK-H7 Light Tower
Attribute Value Mast Spec 9m, hydraulic, 8 sections, 359° rotation, 14s extension/10s descend Power 50Hz (6kW rated)/60Hz (7kW rated), 7-8kW max output Lighting 440000 lumens, 3900㎡ coverage, 75° automatic lamp rotation Convenience 2*16A sockets, parking braking, <80km/h trailer speed
HYLTK-H7 light tower has 9m hydraulic mast, Kubota engine, 4*1000W lamps, 50/60Hz options, 3900㎡ coverage, ideal for efficient large-area lighting
PHOTO MODEL | HYLTK-H7 | |
Mast Height (m ) | 9 | |
Frequency(Hz) | 50 | 60 |
Rated voltage(V) | 230 | 240/120 |
Rated power (kW) | 6 | 7 |
Max.Output (kW) | 7 | 8 |
Power Outlet Sockets | 2*16A | 2*16A |
Fuel Consumption (L/H) | 1.7 | |
Fuel Tank Capacity (L) | 40 | |
Noise Level (7m)dB(A) | 76 | 74 |
Weight (KGS) | 1630 | |
Dimension in Operation (L x W x H) mm | 2400x1800x9000 | |
Dimension in Transport (L x W x H) mm disassembly | 2400x1800x2540 | |
Load Capacity in 20FT (units) disassembly | / | / |
Load Capacity in 40HQ (units) disassembly | 4 | 4 |
Engine | Hongyang | |
Speed (rpm) | 1500 | 1800 |
Prime Power (kw) | 8.4 | 10.1 |
Cooling System | Water-cooled | |
Oil capacity | 5.1 4.9 | |
Alternator | Hongyang | |
Continued Power (kVA) | 7 | 8 |
Excitation mode | Capacitor exciter | |
Alternator Insulation | H | |
Protection Grade | IP23 | |
Mast | Hydraulic | |
Section No. (Extened) | 8 | |
Mast Rotation | 359° | |
Mast Extension Time | 14 seconds | |
Mast Descend Time | 10 seconds | |
Lighting | ||
Type of lights | Metal halide lamp | |
Number & Power of the lights | 4*1000W | |
Light angle turning Mast Lighting & Extension | Hydraulic operation | |
Light angle turning | Electric | |
Luminous flux | 4*110000=440000 | |
Illum Area (5 Lux min) ㎡ | 3900 | |
Lamps Rotation | 75° (Automatic) | |
Protection Glass | IP33 | |
Color Temperature | 4200K | |
Trailer | ||
Braking System | Parking braking | |
Hitch | Ball type/O Ring option | |
Tire Rim Size | 185/R14'' | |
Speed | <80km/h | |
