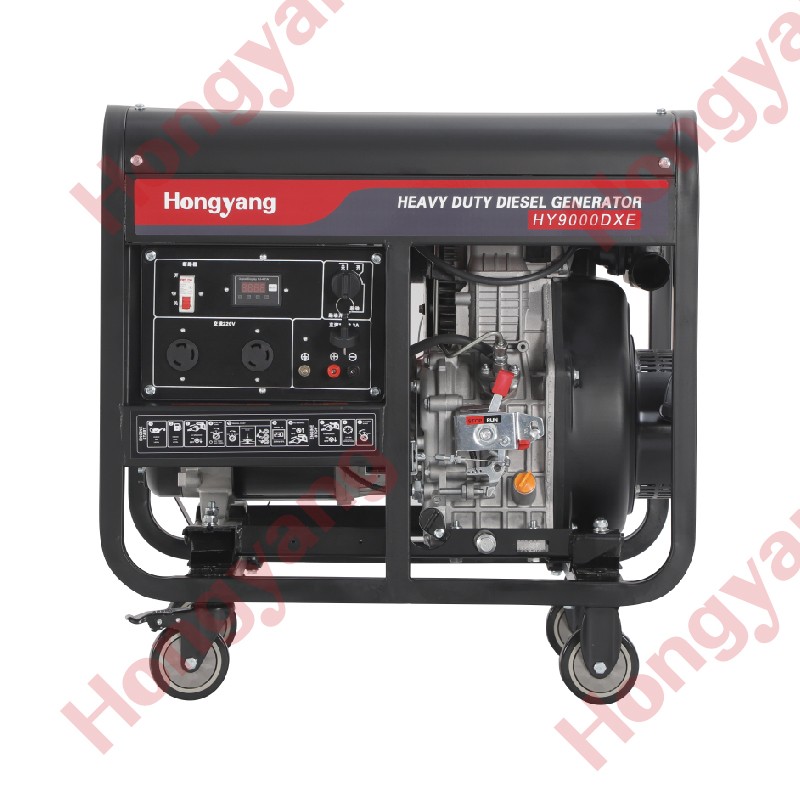

HY9000DXE Diesel Generator Set
I. Generator Type：Open Frame Air Cooled Single Cylinder Diesel Generator Set II. Engine Model：HY195DFE III. Phase Options：Single Phase (9000DXE) 、Three Phase (9000DXE/3) IV. Power Output：Rate Output 6.5 - 6.8 KW (single phase) 、6.5 - 6.8 KW (three phase) ；Max Output 6.8 - 7.2 KW (single phase) 、6.8 - 7.2 KW (three phase) V. Engine Specifications：Air Cooled 1 - Cylinder 4 - Stroke Direct Injection Diesel Engine ；Bore*Stroke 95x75 mm ；Displacement 531 cc ；Compression Ratio 19:01 VI. Lubricati
Product Description
Hongyang HY9000DXE is an open frame air - cooled single - cylinder diesel generator set. It is designed to provide stable power output, featuring high reliability and efficiency, which makes it suitable for a variety of power - demanding scenarios, such as backup power supply for households or small businesses.
| Model | HY9000DXE | HY9000DXE/3 |
|---|---|---|
| Type | Open Frame Air Cooled Single Cylinder Diesel Generator Set | |
| Rate Output(KW) | 6.5 | 6.8 | 6.5 | 6.8 |
| Max Output(KW) | 6.8 | 7.2 | 6.8 | 7.2 |
| Frequency(HZ) | 50 | 60 | 50 | 60 |
| Phase No | Single Phase | Three Phase |
| Power Factor | CosØ = 1 | CosØ = 0.8 |
| Excitation Mode | Brush(AVR) | Brush(AVR) |
| Starting Type | Electric Starter | Electric Starter |
| Engine Model | HY195DFE | HY195DFE |
| Type | Air Cooled 1 - Cylinder 4 - Stroke Direct Injection Diesel Engine | Air Cooled 1 - Cylinder 4 - Stroke Direct Injection Diesel Engine |
| Bore*Stroke(mm) | 95x75 | 95x75 |
| Displacement(cc) | 531 | 531 |
| Rated Power(KW) | 8.3 | 9 | 8.3 | 9 |
| Rotation Speed(RPM) | 3000 | 3600 | 3000 | 3600 |
| Compression Ration | 19:01 | 19:01 |
| Lube Type | Above CD Grade or SAE10W - 30,15W - 40 | Above CD Grade or SAE10W - 30,15W - 40 |
| Lube Capacity(L) | 1.65 | 1.65 |
| Fuel | 0# or - 10# Diesel | 0# or - 10# Diesel |
| Net Weight(Kg) | 125 | 125 |
| Gross Weight(Kg) | 130 | 130 |
| Packing Size(mm) | 740x505x640 | 740x505x640 |
