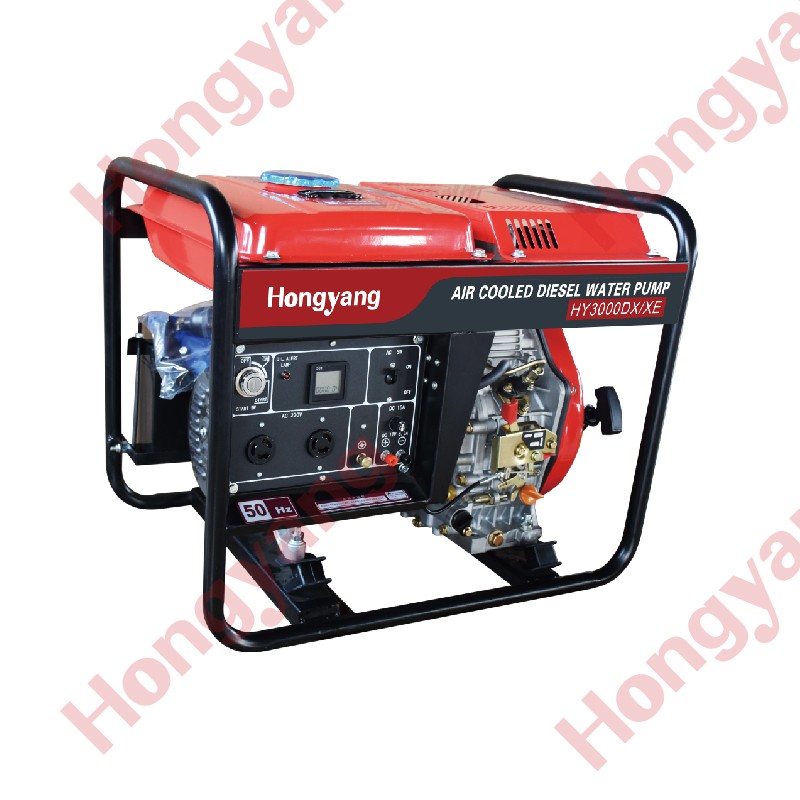

HY3000DX/XE Diesel Generator Set
Core Specs: Open - frame air - cooled single - cylinder diesel generator. Rate output 2.5/2.8 KW, max output 2.8/3 KW. Power & Phase: 50/60 HZ frequency. Single phase (HY3000DX/XE) or three phase (HY3000DX/XE/3). Power factor CosØ=1 (single)/0.8 (three). Engine & Performance: Engine model HY173DF/FE (air - cooled 1 - cylinder 4 - stroke). Bore*stroke 73X59 mm, 247 CC displacement. 3000/3600 RPM, 20:01 compression ratio. Fuel & Lubrication: Uses 0#/-10# diesel. Lube above CD grade/SAE10W-30, 1
Product Description
Hongyang HY3000DX/XE is an open frame air - cooled single - cylinder diesel generator, a practical and efficient power device with reliable performance. 1. Rate Output: 2.5KW (50HZ), 2.8KW (60HZ) 2. Max Output: 2.8KW (50HZ), 3KW (60HZ) 3. Engine Model: HY173DF/FE 4. Rotation Speed: 3000rpm or 3600rpm 5. Fuel: 0# or - 10# Diesel 6. Net Weight: 62Kg 7. Power - Take - Off: Crankshaft
| Model | HY3000DX/XE | HY3000DX/XE/3 |
|---|---|---|
| Type | Open Frame Air Cooled Single Cylinder Diesel Generator | |
| Rate Output(KW) | 2.5 | 2.8 | 2.5 | 2.8 |
| Max Output(KW) | 2.8 | 3 | 2.8 | 3 |
| Frequency(HZ) | 50 | 60 | 50 | 60 |
| Phase No | Single Phase | Three Phase |
| Power Factor | CosØ = 1 | CosØ = 0.8 |
| Excitation Mode | Brush(AVR) | |
| Starting Type | X: Manual Starter E:Electric Starter | |
| Engine Model | HY173DF/FE | |
| Type | Air Cooled 1 - Cylinder 4 - Stroke Direct Injection Diesel Engine | |
| Bore*Stroke(mm) | 73X59 | |
| Displacement(cc) | 247 | |
| Rated Power(KW) | 3.2 | 3.7 | 3.2 | 3.7 |
| Rotation Speed(RPM) | 3000 | 3600 | 3000 | 3600 |
| Compression Ratio | 20:01 | |
| Lube Type | Above CD Grade or SAE10W - 30,15W - 40 | |
| Lube Capacity(L) | 0.8 | |
| Fuel | 0# or - 10# Diesel | |
| Net Weight(Kg) | 62 | |
| Gross Weight(Kg) | 65 | |
| Packing Size(mm) | 640x480x540 | |
