HY2V80DE Diesel Engine
Core Performance: 794CC displacement, 19:01 compression ratio. Output: 12/16.3 KW/HP (3000RPM) or 14/19.04 KW/HP (3600RPM). Fuel & Lubrication: Uses 0#/-10# light diesel. Lube type CF15W/40, capacity 1.5 - 3 L. Starting & Power: Electric starter. Crankshaft power take - off, 适配不同动力需求设备（suitable for equipment with different power requirements）. Size & Weight: Dimensions 540x590x625mm. Net weight 58/65 Kgs. Applications: Ideal for generators, agricultural machinery (e.g., large - scale irrigat
Product Description

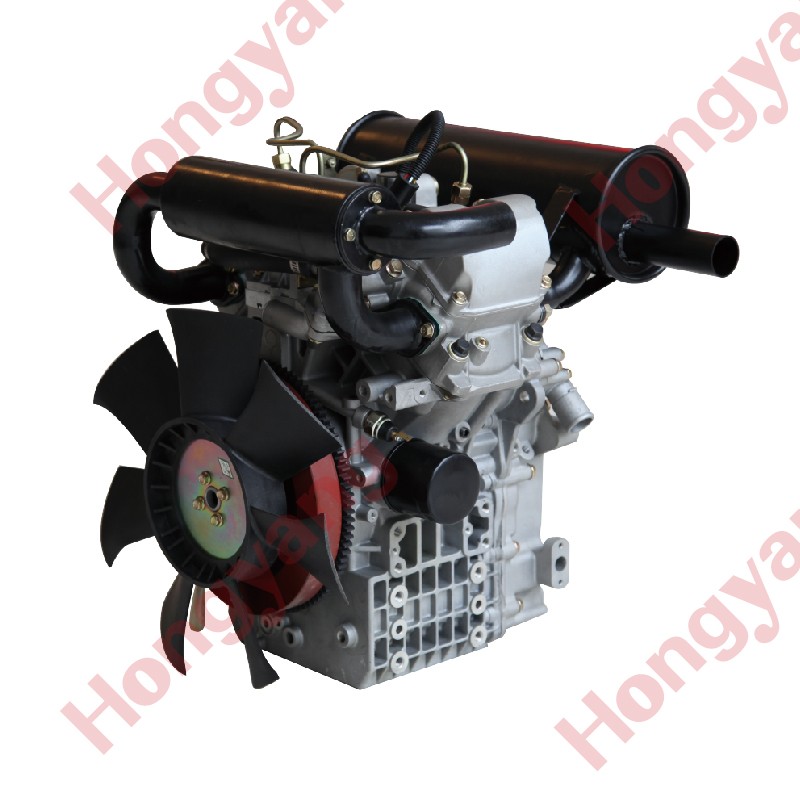

Hongyang HY2V80DE Diesel engine is V-Type 2-Cylinder 4-Stroke Water Cooled diesel engine is a reliable and efficient power source known for its exceptional performance and durability.
1.Rated Output:12KW/16.3HP
2. Roation Speed:3000rpm
3. Fuel Tank Capacity:1.5~3L
4. Power-Take-Off: Crankshaft
| Model | HY2V80DE（ |
|---|---|
| Engine Type | V-Type 2-Cylinder 4-Stroke Water Cooled Diesel Engine |
| Bore*Stroke（mm） | 2*80x79 |
| Displacement（CC） | 794 |
| Compression Ratio | 19:01 |
| Rated Output（KW/HP） | 12/16.3 | 14/19.04 |
| Rotation Speed（RPM） | 3000 | 3600 |
| Fuel Type | 0# or -10#Light Diesel |
| Lube Type | CF15W/40 |
| Lube Capacity（L） | 1.5 - 3 |
| Starting System | E:Electric Starter |
| Power - Take - Off | Crankshaft |
| Dimension（LxWxH）（mm） | 540x590x625 |
| Net Weight（Kgs） | 58/65 |
