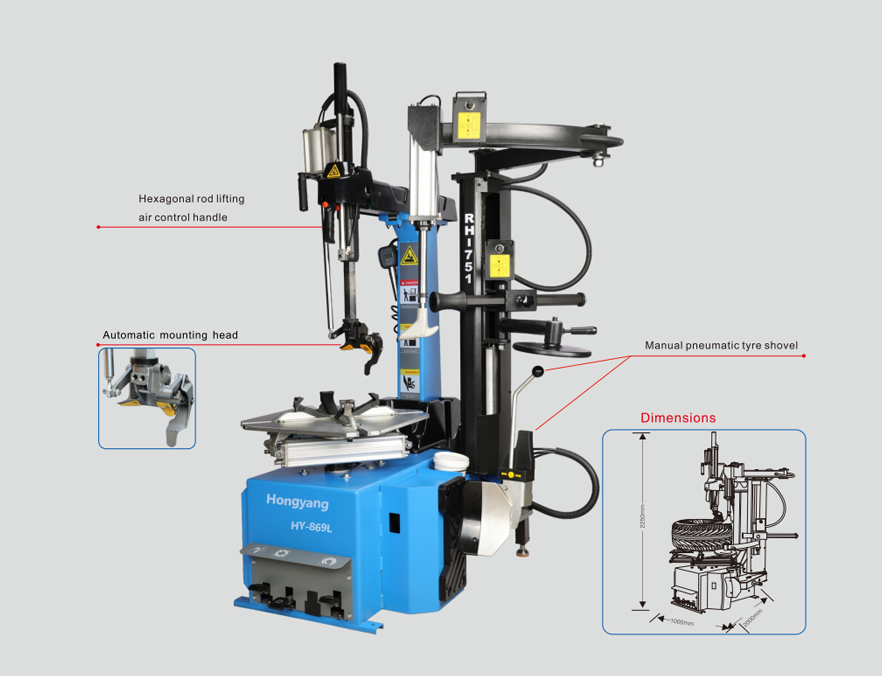

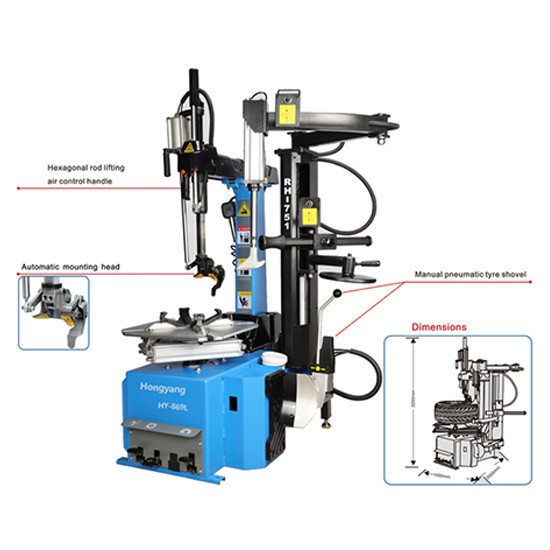

Tyre changer HY-860L+RH751
I. The powerful and reversible mounting head replaces the traditional crowbar, thoroughly protecting tyre lips and rims while making mounting and dismounting more convenient and faster. It supports a maximum mounting and dismounting size of up to 24 inches, and the auxiliary arm enables more efficient service for mounting and dismounting low-profile tyres and run-flat tyres. II. The pneumatic handle controls the up-and-down lifting system of the hexagonal rod; the professionally designed, user-
Product Description
Item | Details |
---|---|
Power supply | 110V/50 - 60Hz 220V/50 - 60Hz 380V/50Hz |
Motor Power | 1.1KW |
Outer clamping hub | 11" - 23" 280 - 585mm |
Inner supporting hub | 12" - 24" 305 - 610mm |
Tire diameter | 40" 1000mm |
Tire width | 16" 410mm |
Operating pressure | 8 - 10bar |
N.W. | 388Kg |
G.W. | 448Kg |
